JPEGsnoop - Interesting Uses
by Calvin Hass © 2009
This page details a few of the many possible uses for the JPEGsnoop tool
Return to JPEGsnoop Main Page

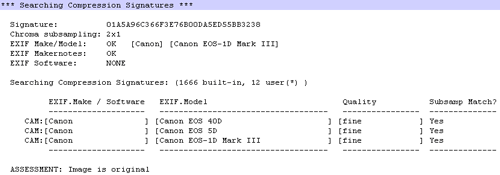

Identifying Edited Photos
Ever wondered if that UFO photo or sasquatch sighting is a fake? ... or if that camera manufacturer's sample images have been touched up?
Check out the page: Using JPEGsnoop to Identify Edited Photos
Extract Embedded Images
How to Extract JPEG Thumbnail image
Simply open the image in JPEGsnoop, then press Ctrl-2 (Image Search Fwd) until you see the current decoded image is the embedded thumbnail (the image view will be very small, generally 160x120 pixels). Under the Tools menu, select Export JPEG and enter in a filename for the output thumbnail image.
How to Extract video frame from AVI movie file
Open the movie file in JPEGsnoop, and ensure that it has been decoded as a MotionJPEG file (only these AVI files are supported currently). Press Ctrl-2 (Image Search Fwd) until you see the desired video frame shown below in the image view window. Under the Tools menu, select Export JPEG and enter in a filename for the output frame image. Note that exporting frames from videos is completely lossless -- no recompression is applied!
Extract JPEG Images from PDF Documents
PDF Documents often contain embedded JPEG images. You can easily search through these images and extract the ones you want by using the Export JPEG command.
Motion JPEG AVI Decoding
Starting with version 0.7.0 of JPEGsnoop, you are now able to open and decode the underlying video stream from M-JPEG AVI files, which are often used in point & shoot digital cameras. Simply do the following:
- Open the .AVI file
- Use the Image Search Fwd command (Ctrl-2) to locate the first video frame
- Hold down Ctrl-2 for continuous playback and frame / histogram decode!
NOTE: As of version 1.0.0, JPEGsnoop parses the AVI RIFF file format, in an attempt to determine if the AVI file is Motion JPEG. If the AVI is MJPEG, then there is a good chance that you can step through each frame of the Image by using [Img Search Fwd]!
Identifying JPEG Quality
One of the more interesting details about a JPEG image is how the image quality is defined. The quality is defined in what is known as a quantization table, which is a series of 64 values representing different frequency components in the image. JPEGsnoop displays these tables under the marker section DQT.
Many programs use their own tables, while some base it on the example provided in the JPEG Standard Annex K. JPEGsnoop attempts to calculate an image quality rating that is based on the standard tables (compatible with cjpeg, djpeg and other tools). To help one identify whether or not the quantization table was derived from the example ones in the Annex, JPEGsnoop calculates the ratio between the Annex table and the file's table, after the heading: AnnexRatio. If all the values nearly the same, then it implies that the quantization table is simply a scaled version of the Annex table.
If the quantization tables are indeed based on the Annex table, then the quality factor (Approx quality factor) that is displayed should be accurate.
Identifying Photoshop Quality Settings
If you are interested in finding out what quality setting was used in Adobe Photoshop's Save As or Save For Web, look for the following in either the APP12 or APP13 marker sections:
Photoshop Save As Quality =
Photoshop Save For Web Quality =
By resaving a JPEG with the same settings you significantly reduce the amount of recompression error!
Searching Executables - Enhancing your Scanner / Cellphone Camera Image Quality
With the help of JPEGsnoop, you can identify the changes required to hack / modify certain programs / firmware to increase their image quality. For example, I was able to improve the quality of JPEG images from my scanner! Many others have done a similar thing to improve the images out from their cellphone!
In release 1.0.0 of JPEGsnoop, you can locate the embedded compression quality settings within any software executable, using the Tools->Search Executable for DQT. Once located, you are then able improve the quality of the JPEG images created by this software!
How to Use Executable Search for DQT
This feature is only useful for advanced who have an understanding of the quantization tables. In essence, the basic idea is that many binary executables (software editors, drivers, utilities, firmware) contain a built-in JPEG encoder. These JPEG encoders often hard-code the DQT tables that define the resulting image quality delivered by the program. JPEGsnoop will attempt to locate the DQT table within an executable, which would then allow a "hacker" to modify the table to increase image quality or decrease output file size (for example).
NOTE: JPEGsnoop opens the executable files in read-only mode and will not make any changes!
There are two modes of operation:
- JPEG file not opened yet
- Prompt the user to locate an executable for examination.
- Search the executable for the JPEG Standard DQT (defined in Annex K)
- Search is performed with 1,2,4-byte luminance tables in both endian modes.
- JPEG file already opened
- Prompt the user to locate an executable for examination.
- Search the executable for the JPEG Standard DQT (defined in Annex K)
- Search the executable for a DQT that matches the luminance DQT (table 0) of the opened JPEG file
- Search is performed with 1,2,4-byte luminance tables in both endian modes.
So, let's say that you have a program called JPEG Maker (JPEGMaker.exe) and it generated an output file called NiceJPEG.jpg. Unfortunately, JPEG Maker didn't provide you with any options as to the output quality of the JPEG. Using JPEGsnoop, you determine that the DQT table (quality level) is very poor.
You open up a sample JPEG file from JPEG Maker (NiceJPEG.jpg), and then use the Search Executable for DQT command. JPEGsnoop prompts you to locate the binary (JPEGMaker.exe), and it then proceeds to search the JPEGMaker.exe file.
If you'd like to test this option, consider running it on the cjpeg.exe (IJG Library free JPEG Encoder) executable. You'll see that JPEGsnoop is able to find the JPEG standard DQT table in the file.
*** Searching Executable for DQT *** Filename: [cjpeg.exe] Size: [104960] Searching for DQT Luminance table matching [JPEG Standard] Searching patterns with 1-byte DQT entries Searching patterns with 2-byte DQT entries Searching patterns with 2-byte DQT entries, endian byteswap Searching patterns with 4-byte DQT entries Searching patterns with 4-byte DQT entries, endian byteswap Found @ 0x00013BCF Done Search |
Searching Executable for DQT Table |
---|
In the example above, JPEGsnoop located a 4-byte table in the executable starting at file offset 0x13BCF. If you were permitted to make changes to the executable, you would now have the file offset you need to insert your own DQT table.
The table below shows what the different search modes are looking for. Note that the search is for the DQT table with the zig-zag ordering (i.e. the same left-to-right, top-to-bottom sequence as in the JFIF DQT).
Mode | Byte Swap? | Entries |
---|---|---|
Original DQT Table | 01,02,03 ... | |
Search 1-byte Table | 0x 01 02 03 ... | |
Search 2-byte Table | No | 0x 0001 0002 0003 ... |
Search 2-byte Table | Yes | 0x 0100 0200 0300 ... |
Search 4-byte Table | No | 0x 00000001 00000002 00000003 ... |
Search 4-byte Table | Yes | 0x 01000000 02000000 03000000 ... |
Error Detection in Corrupt JPEG Photos
There are many errors (typically from corrupted JPEG) that can be identified by JPEGsnoop. An error in the file may appear in many different forms when decoding a JPEG image. These may include:
- Overread scan segment - Decoder runs out of data when trying to read the variable-length huffman codes to produce all of the needed MCUs.
- Invalid huffman code - When searching for the next bits that appear in the file (within the scan segment), no match was found in the variable length huffman code tables.
- YCC clipping in DC - Each MCU adds or subtracts from the DC (average) value in the previous MCU. These should all stay within an 8-bit range, but corruption in the DC coefficient may cause this value to wander out of range. This type of error will cause sudden large-scale changes in color or brightness in your image. As this type of error generally won't recover, JPEGsnoop will only report the first 10 of these in the log file.
- >64 coefficients in MCU - When trying to find all of the AC coefficients that correspond to a single MCU, the decoder counted more than 63 AC coefficients (+ 1 DC coefficient) without observing an EOB (End of Block) or an exact count of 64 coefficients (an implicit EOB).
When JPEGsnoop detects an error, it generally will show you the exact location of the error in the original JPEG file. This will be reported in the form:
*** ERROR: Can't find huffman bitstring @ 0x00002DC3.1, table 0, value [0xffc84d5a] *** ERROR: Bad huffman code @ 0x00002DC3.1 *** ERROR: Bad scan data in MCU(2,10): Lum DC CSS(0,1) @ Offset 0x00002DC3.1 MCU located at pixel=(32,168)
Precise Bit Error Detection
In the above, the @ 0x00002DC3.1 refers to the hexadecimal file offset 2DC3 (11715) bytes, bit 1 (of 8). Note that JPEGsnoop has the unique ability to report precise positioning, including the bit within the byte that contains the start of the error!
